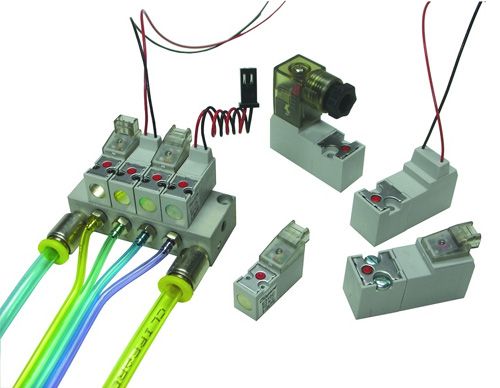

24V Miniature Valves with In-Line Connector with LED for 10mm Manifold, 3/2 Normally Closed

24V Miniature Valves with In-Line Connector with LED for 10mm Manifold, 3/2 Normally Closed

Zoom image

30,46 EUR

19 % VAT incl. excl. Shipping costs

Shipping time: 1-2 Week

Product no.: E310A-1C024
For further information, please visit the homepage of this product.

24V Miniature Valves with In-Line Connector with LED for 10mm Manifold, 3/2 Normally Closed

See Clippard Catalog: Page 203

Medium Air, Gas or other compatible Fluids
Working Pressure Vacuum to 110 psig/7.6 bar max.
Max. Flow Rate Standard: 0.5 scfm (14 l/min)
Exhaust Flow 0.8 scfm (23 l/min)
Response Time 8 ms when energized; 10ms when de-energized
Electrical 24 VDC
Connector P/N C2A-RB300C2A-RB500, C2A-RB1000
Manifolds klick here for Manifolds
Power Consumption 0.6 watts dependent on orifice size and pressure
Material

Stainless steel core and springs, springs, nylon body, FKM seals, and Buna-N gasket,

FKM gasket available, consult factory

Temperature Range 23 to 122°F (-5 to 50°C)
Connector In-Line Connector with LED
Orifice 0.020”
Wattage 0.6
Type 3/2  Normally Closed
